2022 Week 11 | Power BI: Project Budget Tracker

1 Comment / Power BI, Workout Wednesday / By

Introduction

Your challenge this week is to create a Project Budget Tracker leveraging the IT Spend Analysis example dataset available to everyone in Power BI Service.  We decided to keep the project management theme going this week with this take on tracking how your project is following the budget.  If you did not do last week’s challenge, I highly recommend you checkout Rob Saunders’ Risk Matrix challenge, here.

For this challenge, you’ll have to connect to the IT Spend Analysis example data set in Power BI Service. The instructions for connecting are detailed in the Dataset section below. This file and associated data is property of obviEnce LLC and has been shared solely for the purpose of demonstrating Power BI functionality with industry sample data.

If you complete this week’s challenge, please include the italicized attribution above someplace in your report.

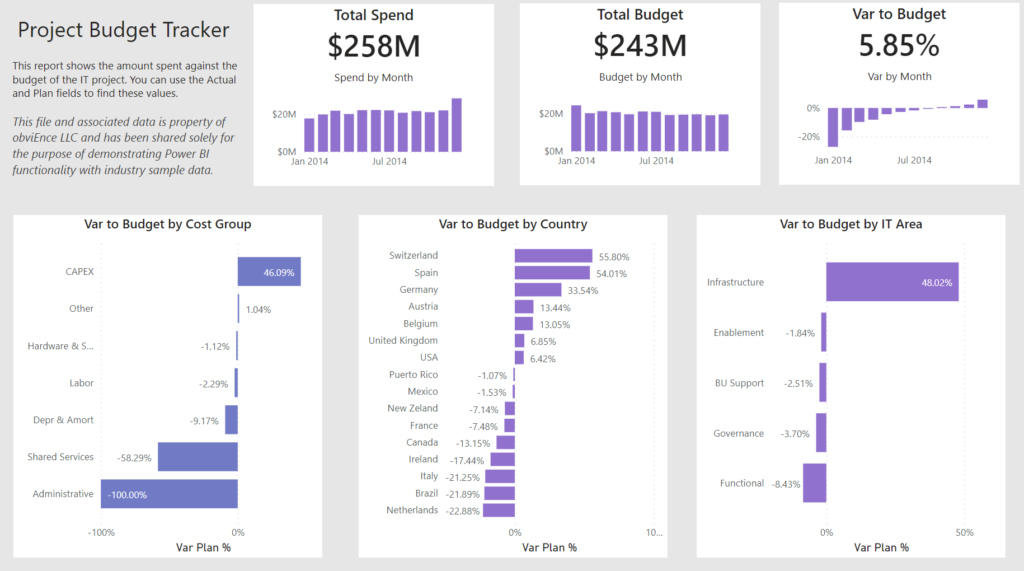

Now, let’s take a look at the visualization. This report shows the project status in terms of plan v budget. The point of this report is to identify whether or not the project is within budget as well as identify the sources of the spend.

Requirements

  1. Connect to the IT Spend Analysis data set available in Power BI Service
    1. In Order to connect to this data set go to PowerBi.com.
    2. Go to the bottom left of the page and click on Get Data
    3.  Right below where it says “More ways to create your own content” – click on Samples
    4.  Choose the IT Spend Analysis data set
    5. Open Power BI Desktop – click on Power BI data sets in the ribbon and then select the IT Spend Analysis data set that you just imported to your workspace
  2. Since the Actual and Plan data is aggregated in a cumulative manner, you will need to back into the amounts that were planned or spent per month. This requires you to create two calculations on top of the provided data set
    1. Actual Mo – this is the amount of Actual spend per month
    2. Plan Mo – this is the amount of spend that is planned for each month
  3. Using the previous two fields, create an actual v plan calculation that shows the % difference between budget and plan for each month
  4. Create three KPI section for Spend, Budget, and Variance
    1. Include trend bar charts by month for each metrc
  5.  Ensure that that each bar chart filters the other charts instead of highlighting them

 GOOD LUCK

Dataset

This week you can find the data on PowerBI.com. This data set is a sample data set available for users in Power BI Service. The instructions to the connect to the data set are in the Requirements section.

Share

After you finish your workout, share on Twitter using the hashtags #WOW2022 and #PowerBI, and tag @JSBaucke, @MMarie, @shan_gsd, @KerryKolosko, and @NerdyWithData. Also make sure to fill out the Submission Tracker so that we can count you as a participant this week in order to track our participation throughout the year.

Solution
